| Description |
VDL-100BN |
TEC-200BN |
TEC-50F |

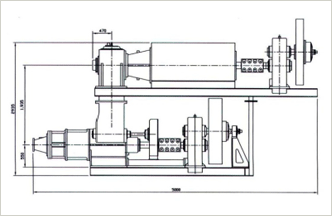

| Dimensions (L*H*W) |
4550*1350*1550 |
5400*1500*1800 |
6100*2150*3735 |
| Installed power (kW) |
75 * 8P |
150 * 8P |
110 / 150 * 8P |
| Capacity (ton/hr) |
25 |
35 |
38 |
| Weight (kg) |
7000 |
9000 |
14000 |
| Speed of screw (rpm) |
31 |
31 |
31 |
| Screw diameter (mm) |
370 ~ 400 |
380 ~ 460 |
410 ~ 500 |
| Motor pulley |
8 grooves |
11 grooves |
11 grooves |
|
|
|
